What is Samsung 960 EVO? What is Samsung 970 EVO? What are the differences between Samsung 960 EVO and 970 EVO? This post from MiniTool will compare Samsung 960 EVO and Samsung 970 EVO.

What Is Samsung 960 EVO?

Samsung 960 EVO is an NVMe SSD, which is a good choice for users who pursue high performance. The Samsung 960 EVO SSD provides enhanced bandwidth, a new controller and Samsung’s intelligent TurboWrite technology so that it delivers the next level of performance, beyond what the SATA interface can provide.

The Samsung 960 EVO SSD also comes with the newly upgraded Magician which helps users to monitor, manage and maintain the drive. In addition, Samsung 960 EVO SSD also comes with solid reliability.

Samsung 960 EVO

What Is Samsung 970 EVO?

Samsung 970 EVO provides breakthrough speeds, best-in-class reliability, and a wide range of capacity options up to 2TB. The Samsung 970 EVO SSD comes with the latest V-NAND, new Phoenix and Intelligent TurboWrite technology so that it can enhance high-end gaming and 4k graphic editing.

It is compact with M.2 form factor, thus greatly expanding storage capacity and saving space for other components. It also has exceptional endurance.

Samsung 970 EVO

Samsung 860 EVO VS 970 EVO: Which One Should You Use?
Samsung 860 EVO VS 970 EVO: Which One Should You Use?

Which SSD should you buy for your PC, Samsung 860 EVO vs 970 EVO? After reading this post, you know the difference between them and which to use.

Read More

After learning some basic information about Samsung 960 EVO and Samsung 970 EVO, what are their differences and which one is better? So, just keep on your reading and find answers in the following part.

960 EVO vs 970 EVO: Which One Is Better?

In this part, we will show you the differences between Samsung 960 EVO and 970 EVO. We will focus on 5 aspects including form factor and interface, capacity, performance, reliability and warranty, and price.

1. 960 EVO vs 970 EVO: Form Factor and Interface

In a solid-state drive, the form factor decides and prescribes the size, shape and other physical specifications of a drive. The hard disk interface is the connection part between the hard disk and the host system. It is used to transfer data between the hard disk cache and the host memory. Therefore, different hard disk interfaces determine the connection speed between hard disk and computer.

So, as for Samsung 960 EVO vs 970 EVO, what are their form factor and interfaces?

Samsung 960 EVO comes with M.2 form factors and it is available in PCIe 3.0×4 and NVMe 1.2 interfaces. The Samsung 970 EVO also comes with M.2 2280 form factor, with the PCIe Gen 3.0×4 and NVMe 1.3 interfaces.

2. 960 EVO vs 970 EVO: Capacity

When selecting a solid-state drive, storage size is a key factor to be considered since a larger hard drive capacity enables you to save more files and data.

So, as for Samsung 970 EVO vs 960 EVO, what are their differences?

Samsung 960 EVOSamsung 970 EVO
Capacity 250 GB, 500 GB, 1,000 GB250GB, 500GB, 1,000GB, 2,000GB

From the above chart, you can find that Samsung 970 EVO provides more available choices and it is up to 2000GB, which is larger than the Samsung 960 EVO SSD. Hence, you can choose any one based on your own needs.

3. 960 EVO vs 970 EVO: Performance

The performance could be one of the most important factors to be considered when choosing an SSD. An SSD with good performance may boost your computer performance, enable it to run faster or decrease the gaming loading time.

So, here we will take about the performance of Samsung 960 EVO 1TB and Samsung 970 EVO 1TB. Look at the following chart.

Samsung 960 EVO 1TBSamsung 970 EVO 1TB
Sequential Read3200 MB/s3400 MB/s
Sequential Write1900 MB/s2500 MB/s
Random Read38,000 IOPS (Thread 4)
14,000 IOPS (Thread 1)
500,000 IOPS (Thread 4)
15, 000 IOPS (Thread 1)
Random Write36,000 IOPS (Thread 4)
50,000 IOPS (Thread 1)
450, 000 IOPS (Thread 4)
50,000 IOPS (Thread 1)

All statistics are from Samsung’s official site. From the above chart, as for Samsung EVO 960 vs 970 1TB, you can find that the Samsung 970 EVO 1TB provides better read and write performance than Samsung 960 EVO 1TB. In addition, the larger capacity the hard drive has, the faster read and write speed it has. So, the Samsung 970 EVO 2TB would enjoy better performance.

4. 960 EVO vs 970 EVO: Reliability and Warranty

As for Samsung 970 EVO vs 960 EVO, we will show you the fourth aspect – reliability and warranty.

Both of them provide good reliability and warranty. Both of them provide 1.5 million hours of reliability. Samsung 960 EVO SSD is backed with a limited 3-year warranty, while the Samsung 970 EVO SSD is backed with a limited 5-year warranty.

5. 960 EVO vs 970 EVO: Price

Here, we will show you the last difference between Samsung 960 EVO and Samsung 970 EVO. It is the price. In general, the budget influences you from choosing a disk. According to the official site, the 1TB Samsung 970 EVO is about $129.99, but the price of Samsung 960 EVO is not available.

So, if you want to know more prices of these Samsung SSDs, you can go to other platforms, such as Amazon, etc. Then choose the most suitable one. Besides, when selecting the SSD, you need to check the interface of the computer and choose the correct one.

5 Samsung M.2 SSDs: Which One You Should Choose
5 Samsung M.2 SSDs: Which One You Should Choose

Samsung has released a lot of M.2 SSDs, but what are the differences between Samsung M.2 SSDs, and which one you should choose?

Read More

From the above part, you have known some differences between 960 EVO and 970 EVO. Apart from them, they also have some other differences, such as power consumption, etc. But after reading the above part, you may already have the answers.

In my opinion, Samsung 970 EVO is better than Samsung 960 EVO because it has a larger hard drive capacity, provides faster read and write speed, and has a longer warranty.

960 EVO vs 970 EVO, what are their differences? This post may help you to decide which one is better because it elaborates on their differences. I’d like to share this post with more friends.Click to Tweet

But, both Samsung SSDs provide good performance than the traditional SATA hard drive. So, they can improve computer performance and decrease system loading time. On the other hand, they come with a large hard drive capacity, allowing you to save a lot of files, folders, pictures, movies, videos, and so on.

Hence, some users would choose to migrate their OS to the Samsung 960 EVO or Samsung 970 EVO SSD so as to make their computer faster. Or, some users would like to upgrade to Samsung 970 EVO who are using Samsung 960 EVO.

So, how to migrate OS to Samsung 960 EVO or Samsung 970 EVO without data loss?

How to Migrate OS to Samsung 960 EVO or Samsung 970 EVO?

To clone OS from HDD to SSD without data loss, you need to use a clone tool. Thus, the professional hard drive clone tool – MiniTool ShadowMaker is recommended. It allows you to migrate the operating system to the Samsung 960 EVO or Samsung 970 EVO SSD with just a few steps.

Now, we will show you how to use MiniTool ShadowMaker to clone OS to the Samsung 960 EVO or Samsung 970 EVO SSD.

1. Connect the Samsung SSD to your computer.

2. Download MiniTool ShadowMaker from the following button, install it and launch it.

MiniTool ShadowMaker TrialClick to Download100%Clean & Safe

3. Click Keep Trial.

4. Then you will enter the main interface of MiniTool ShadowMaker and go to the Tools page.

5. Next, click Clone Disk to continue.

choose Clone Disk to continue

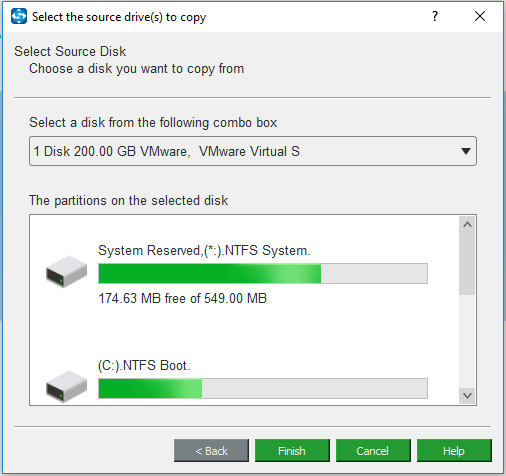

6. On the next page, click the Source module to select the disk clone source. Here, you need to choose the original system disk as the clone source, and then click Finish to continue.

choose a disk clone source

7. Click the Destination module to select a target disk. Here, you need to select the Samsung 960 EVO or Samsung 970 EVO SSD as the target disk. Then click Finish to continue.

choose a target disk

8. Then you will receive a warning message which tells you that all data on the target disk will be destroyed during the cloning process. If you have important files on it, please back up them first.

9. Then the disk clone process will begin. The time it costs depends on the number of files on the source hard drive. Do not interrupt it until it is finished. Otherwise, your target disk will be unbootable.

start to clone disk

When the disk cloning process is finished, you will receive a message which tells you that the source disk and the target disk have the same signature and either of them will be marked offline if both are connected to your computer. So, you need to remove or disconnect either of them.

In this post, you need to remove the original hard drive and then install the Samsung 960 EVO SSD or Samsung 970 EVO SSD on your computer. Then enter the BIOS to change the boot order.

read the warning message

How to Install Samsung 860 EVO Without Reinstalling OS (3 Steps)
How to Install Samsung 860 EVO Without Reinstalling OS (3 Steps)

If you want to know how to install Samsung 860 EVO SSD in laptop or desktop computer without reinstalling OS, this post is what you need.

Read More

After all steps are finished, you have migrated OS to the Samsung SSD with MiniTool ShadowMaker and your computer performance will be improved. In addition, MiniTool ShadowMaker is also a piece of professional Windows backup software, which is designed to back up files, folders, disks, partitions, and the operating system.

Bottom Line

As for 960 EVO vs 970 EVO, this post has shown 5 aspects. If you do not know which one is better and have difficulty in choosing which one, read the above content to find answers. In my opinion, Samsung 970 EVO is a litter better than Samsung 960 EVO.

If you have any different ideas of Samsung 960 vs 970 EVO or have any problem with MiniTool ShadowMaker, you can leave a message in the comment zone or feel free to contact us via the email [email protected] and we will reply to you as soon as possible.

960 EVO vs 970 EVO FAQ

What’s the difference between 970 EVO and 970 EVO Plus?
970 EVO and 970 EVO Plus are the solid-state drives of Samsung. Performance is one of the differences between 970 EVO and 970 EVO Plus. And the major difference between these two Samsung SSDs is the increased density or layer comprising the memory modules. 970 EVO uses the 64-layer of V-NAND, while 970 EVO Plus uses 96-layer.
Is the 970 EVO worth it?
Samsung 970 EVO provides a large storage size and provides fast read and write performance. It also comes with longer reliability and warranty. In addition, it is reasonably priced. So, if you want to use it to save files or improve computer performance, it would be a good choice.
How long will a 970 EVO last?
According to the official site, Samsung 970 EVO is able to last 1.5 million hours.
Does the 970 EVO need a heatsink?
M.2 NVME SSDs like the Samsung 970 EVO should be used with a heatsink. Motherboard makers provide them with the slots on their boards that can run the NVME spec. NVME drives can get very hot under sustained use and will suffer performance issues if running too hot. Besides, long term overheating could cause hard drive issue and shorten its lifespan.
