As time goes on, you may upgrade your devices to newer, more effective models, including PCs. These old devices must hold precious memories you may want to preserve and always have by your side. If you are searching for some practical ways to perform an IDE hard drive data recovery, we are here from MiniTool to teach you how to get your data back from an IDE hard drive.
Many users reported encountering data loss situations on their IDE hard drives and have no idea how to perform an IDE hard drive data recovery. As an old hard drive, the IDE hard drive is vulnerable to data loss. If you are in the same case, fret not; it isn’t impossible to get your data back. Keep reading to get more details.
Can You Recover Deleted Data from an IDE Hard Drive
It is indeed feasible to recover data from an IDE hard drive using appropriate tools. The methods for IDE hard drive data recovery are contingent on the condition of both your IDE hard drive and the software you choose.
Situation 1. The IDE Hard Drive Is Functional
If the IDE hard drive is still operational but the stored data is lost, to recover valuable data, using powerful and professional IDE hard drive data recovery software is essential. Engaging a professional data recovery software could be a crucial step in salvaging important memories or vital business data from this old storage medium.
There are several factors you may lose data from a healthy IDE hard drive:
- Deleting a partition from an old IDE hard drive results in the total loss of files stored on it.
- Corruption of the file system makes the drive inaccessible, leading to data loss from an old IDE hard drive.
- Unintentionally formatting the entire IDE hard disk will erase all the data stored within it.
- Certain software conflicts and frequent informal system shutdowns can lead to the corruption of an IDE hard drive and data loss.
- Other causes, such as malware attacks, hardware conflicts, unexpected power surges, and boot loader corruption, can also contribute to the corruption of an older IDE hard drive.
- …
Situation 2. The IDE Hard Drive Won’t Boot
If the IDE hard drive is the computer’s boot disk and the PC has unfortunately stopped booting up, it will prevent you access to the important data. To recover files from such a non-functional hard drive, one effective solution is to create a bootable USB drive.
After creating a bootable drive, you can connect it to your PC with the IDE hard drive, and recover data when PC won’t boot.
Situation 3. The IDE Hard Drive Has Physical Damage
When your IDE hard drive suffers from severe physical damage or tricky issues, it may lead to data loss. In this case, you’d better ask for help from expert data recovery services. For serious damage, trying the DIY IDE hard drive data recovery may cause secondary damage to the data and reduce the possibility of successful data recovery.
Possible Problems After Connecting Your IDE Hard Drives
The first step for IDE hard drive data recovery is connecting your drive to the PC. If the IDE hard drive is connected to your old computer and both the PC and hard drive still work properly, you can skip to the IDE hard drive data recovery part.
If your IDE hard drive isn’t connected to any device and you want to recover data from it, the simplest way to connect it to your PC is to use an IDE to USB converter. If your computer has on-board IDE ports, you can directly connect it. After connecting the IDE hard drive, you may encounter some issues as follows.
Problem 1. IDE Hard Drive Can’t Be Detected in Windows
“I have a couple of old IDE drives that I need to recover the data from them but Windows disk management does not see the drive. When I plug in the power for the drive, the platters start spinning and there is no clicking; I just don’t think Windows (or any other tool that I am using) will read the contents. It had/has Windows on it and it won’t boot to the drive when I try a different boot selection. Any ideas on how to recover the data?”community.spiceworks.com
Several factors could contribute to this vexing issue that your IDE hard drive fails to be recognized by Windows, including hardware malfunctions, incorrect BIOS settings, or faulty connections. Here are several potential ways to fix it.
Fix 1. Use an IDE-to-USE Adapter
If you are directly connecting your IDE hard drive to the motherboard, you are recommended to use an IDE to USB converter. Using an IDE to USB converter not only simplifies the process of accessing data from your IDE hard drive but also ensures better compatibility with modern operating systems.
Fix 2. Check Jumpers and Make Sure the Drive Is Detected in BIOS
When looking at jumpers, check the drive settings. “Cable Select” is typically the best option, but some motherboards require it to be set as “Master” or “Single.” If the drive isn’t recognized, note the current settings and switch from CS to Single or Master. Opt for setting Cable Select or Master, as setting it to Slave can cause issues.
Be sure to double-check your BIOS settings, particularly on motherboards from the transition between ATA and wide SATA adoption. You may need to disable PATA to enable SATA, and vice versa. Your BIOS should recognize the drive, which will help determine if it’s malfunctioning or simply not detected.
Fix 3. Use a Linux or MacOS Computer
If your IDE hard drive is not recognized by a Windows operating system, consider connecting it to a computer that runs on Linux or macOS. These alternative operating systems can often detect hardware that Windows may overlook, potentially providing you with access to your data.
Problem 2. No IDE HDD Volume Information in Disk Management
“Hoping someone here can help/provide a missing piece of the puzzle for me. I have a lot of old IDE hard drives that I would like to copy the information off of. I can see the disk in the Disk Management utility, but there isn't any volume information associated with the Disk. Appreciate any thoughts/ideas sent my way.”community.microcenter.com
As per the user’s report, no volume information means that the operating system is unable to detect or display any partitions or usable space associated with the IDE hard drive, potentially indicating a lack of proper configuration, a driver issue, or a malfunction with the hard drive itself.
Fix 1. Assign a Drive Letter

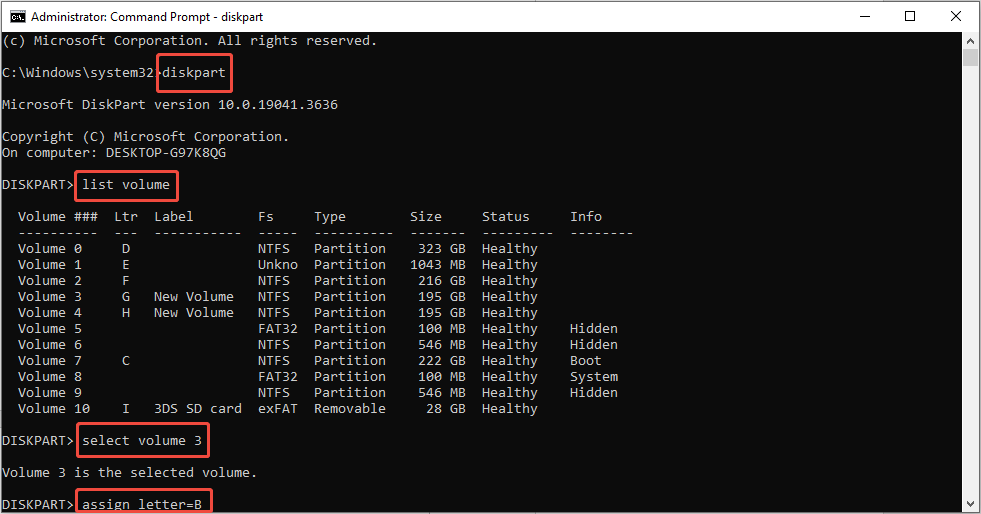

You can choose to use Disk Management to assign a drive letter with an administrator account. In addition, you can run Command Prompt as an administrator. In this window, firstly, type diskpart and press Enter. Next, type list volume and press Enter to see all available volumes, and then select the volume of your IDE hard drive by typing select volume X (replace X with the volume number). To assign a new letter, type assign letter=Y (replace Y with your desired letter).
Fix 2. Format the IDE Hard Drive Using Third-party Software
If the above method doesn’t work, consider formatting the IDE hard drive to fix the issue. MiniTool Partition Wizard is a powerful and multifunctional partition management tool. This program allows you to format partitions, initialize drives, resize partitions, and more. I would like to guide you through the specific steps to format a hard drive using this software.
Step 1: Download and install MiniTool Partition Wizard.
MiniTool Partition Wizard FreeClick to Download100%Clean & Safe
Step 2: Open the software and select the partition that is greyed out on your IDE hard drive or the whole drive from the right pane.

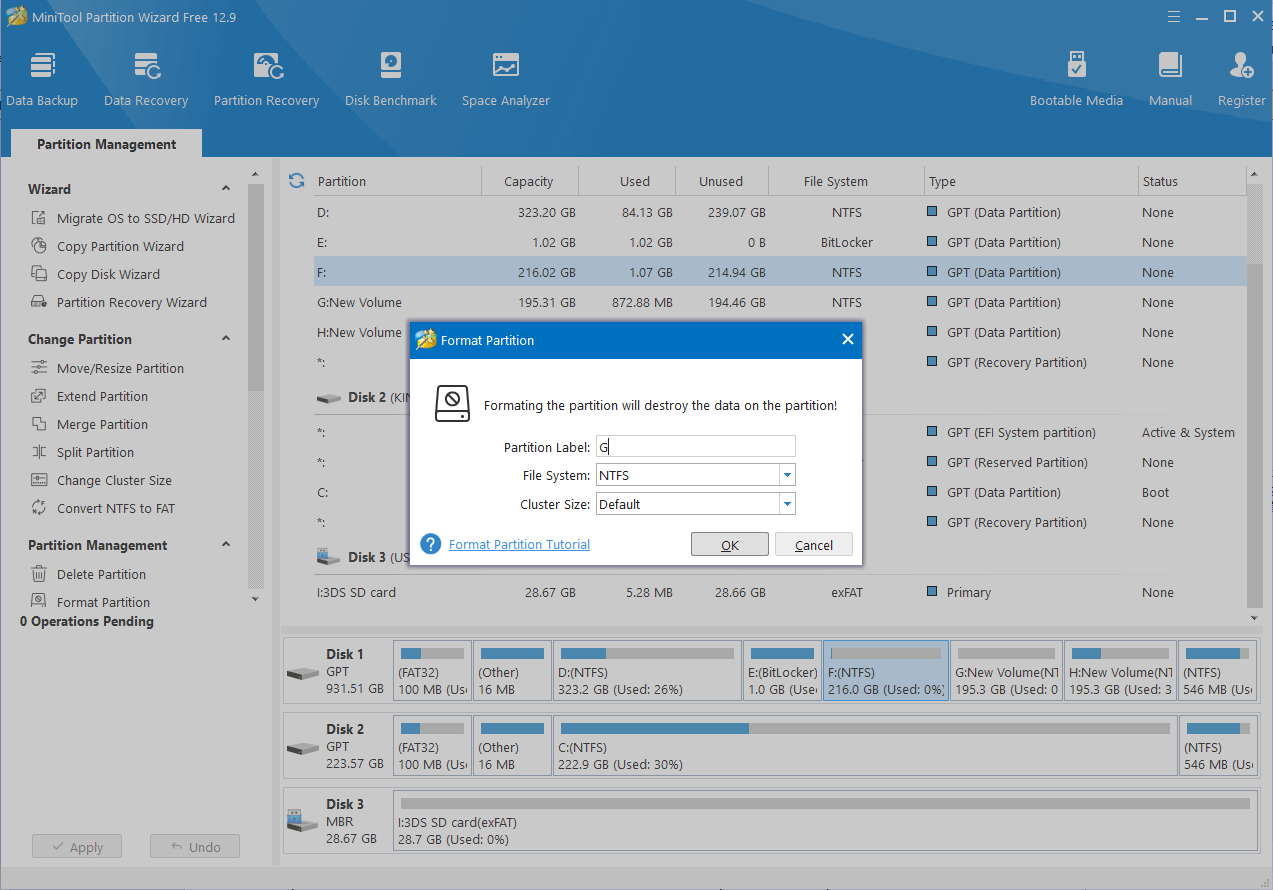

Step 3: In the left sidebar, choose Format Partition under the Partition Management tab, select a file system, and choose a partition label, then click OK to save the changes.
Step 4: Confirm all the information and click Apply if there is no mistake. If you need to change information, click Undo and reset all the information.
How to Recover IDE Hard Drive Data in Windows
If your IDE hard drive can be detected by Windows normally, whether the device is accessible or not, you can use a professional data recovery tool to carry out an IDE hard drive data recovery. There are many hard drive data recovery tools available on the market, enabling you to recover files on your own without having to send the HDD to a repair or recovery center.
Which tool is the best choice? MiniTool Power Data Recovery stands out as a top recommendation.
MiniTool Power Data Recovery is a free data recovery tool that is strongly adaptable to popular file storage devices, including internal/external hard drive data recovery, SD card data recovery, RAW USB data recovery, etc.
Moreover, it accommodates a variety of file loss scenarios, ranging from direct deletions to losses resulting from file system corruption, virus attacks, power outages, and more. It functions effectively on nearly all Windows versions, including Windows 11, 10, 8.1, and 8.
If you are using MiniTool Power Data Recovery for the first time to recover data from an IDE hard drive, you can download and install its free version. This version allows you to recover up to 1 GB of files at no cost.
MiniTool Power Data Recovery FreeClick to Download100%Clean & Safe
Now, follow the step-by-step instructions for recovering IDE hard drive data with MiniTool Power Data Recovery:

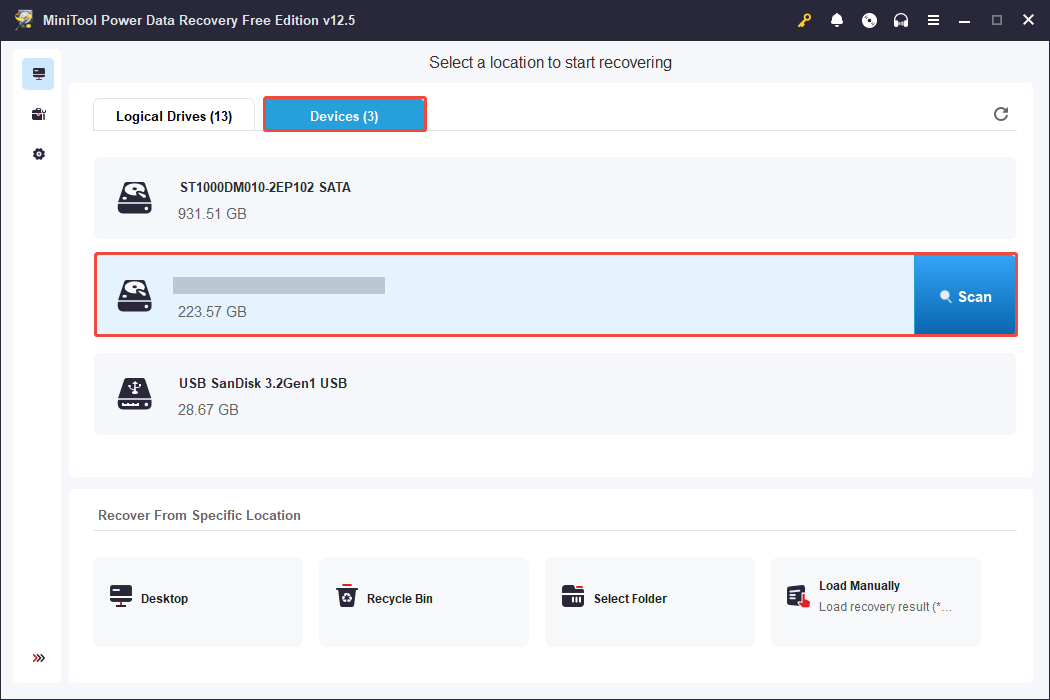

Step 1. Scan Your IDE Hard Drive to Find Lost Files
After installation, click the MiniTool Power Data Recovery software icon to enter its main interface, and click the Yes button when prompted by the UAC. You will then see all identified partitions under Logical Drives, which includes deleted or lost partitions and unallocated space. You can choose the target partition of your IDE hard drive and click Scan. Additionally, if you are not sure which partition is your IDE hard disk, you can switch to the Devices tab, and the program will list your IDE hard drive with detailed information, including name and storage.
The time required for scanning mainly depends on the volume of data. It might take a while to finish the complete scanning process, so please be patient until it’s fully completed for optimal results.

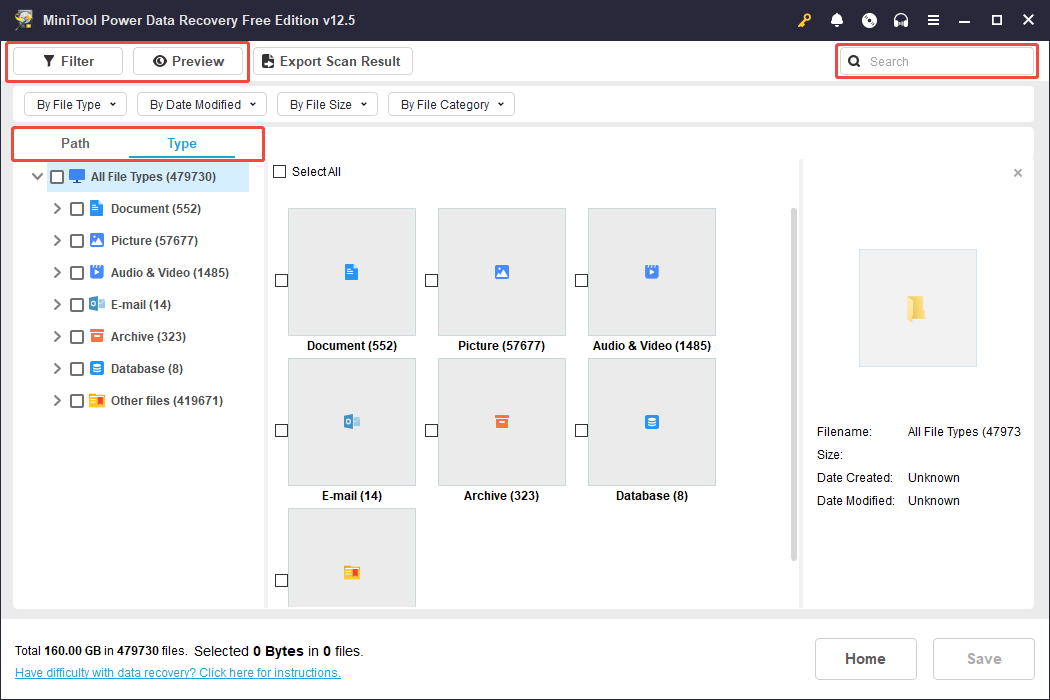

Step 2. Locate and Preview Desired Files
Once the scanning process is finished, you can utilize the following options to navigate through the files on the results page and identify the items you wish to restore.
- Path: This display arranges the recovered files according to the directory structure. You will need to expand the main folders and subdirectories to quickly locate the files you are looking for.
- Type: In this section, the retrieved files are categorized by their types and formats. This arrangement simplifies the process of finding specific file types, such as documents, photos, videos, audio, and more.
- Filter: This option allows you to narrow down the results of the scan based on various criteria. Specifically, you can refine files by file type, file size, last modified date, or file category. This feature helps you eliminate unrelated items and accelerate the recovery process.
- Search: This is a fast and handy feature that enables you to locate particular files by entering a keyword from the file name. Just type the keyword into the search box and hit Enter.
- Preview: This capability allows you to examine the content of files before recovering them. It helps verify if a file is the one you intend to recover, thus preventing the unnecessary restoration of unwanted files.

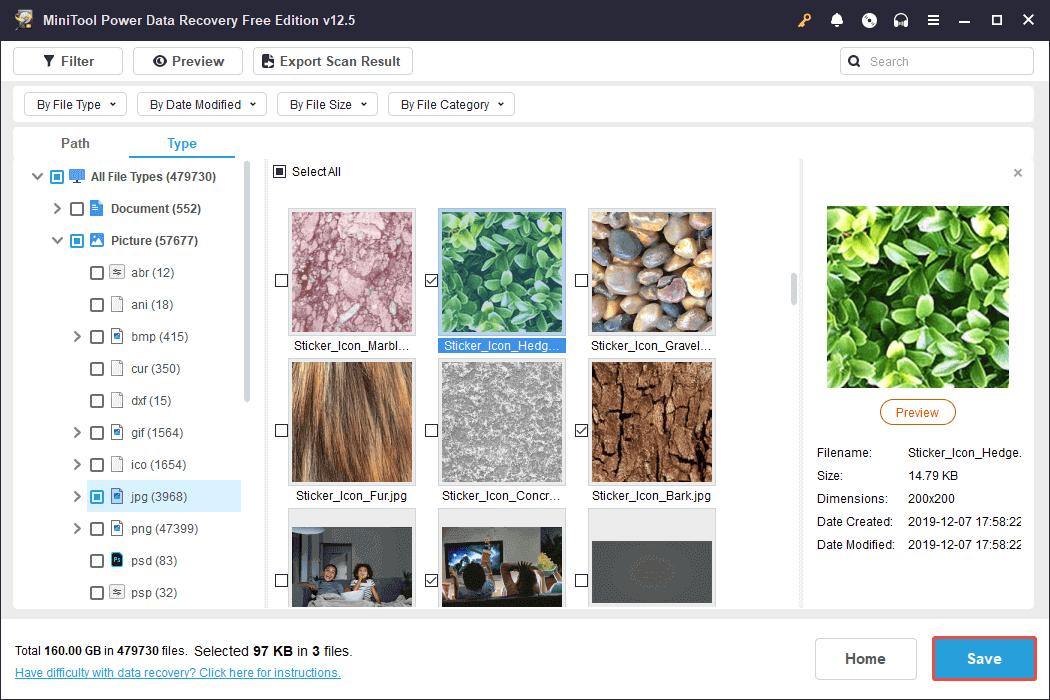

Step 3. Save the Wanted Files
Finally, ensure that all the files you want to recover are ticked. Then, click the Save button and choose a proper location in the pop-up window to save the recovered data.
About the IDE Hard Drive
An IDE (integrated drive electronics) hard drive is a storage device that connects to a computer’s motherboard using a parallel interface. It features a rotating disk and a read/write head that enables rapid data access and storage.
IDE is a standard interface for hard drives, floppy disks, and other storage devices when connecting to computers. It was initially created by Western Digital and later known as ATA or Parallel ATA (PATA). This advanced interface technology incorporates the drive controller, distinguishing it from other types of interfaces. The connection between the hard drive and the computer is established via a 40-pin cable.
The acronym “PATA” stands for Parallel ATA, which describes the method used for data transmission between the hard drive and the motherboard. PATA devices utilize a parallel interface, allowing data to be transmitted in several bits at the same time.
Verdict
To sum up, with MiniTool Power Data Recovery at hand, you can easily perform an IDE hard drive data recovery without worrying about the safety of the original files and the storage device. Also, this guide covers several possible issues that you might face after connecting your IDE hard drive to a PC, along with corresponding solutions you can follow.
